01
Seismic
A third-party rack seismic report is asked for before anything else.
CAICT rack seismic test report, 18 pages — open to page-by-page inspection below.
Industry · Finance & banking
Bring your acceptance standard. We will answer with the report.
A finance review does not ask what a cabinet looks like. It asks for the seismic report, two power positions and the document that proves the unit was checked. All three exist, and all three are on this page.
CAICT seismic test report · 18 pages
Send your acceptance standardThree things a review asks before it reads anything else
02
Power
Two ways in, and somewhere inside the row to land them.
Mounting positions reserved for intelligent busway / PDU, per cabinet. Precision column head cabinet as an option.
03
Audit trail
Paper that can still be produced three years after handover.
Full inspection before shipment with a certificate per unit; key quality data kept for the product lifecycle.
The lines a review asks for
| Acceptance area | What we can put against it |
|---|---|
| Seismic | Third-party rack seismic test report, CAICT, 18 pages |
| Structural load | Third-party static-load test report, 3 pages |
| Containment | Third-party cold aisle containment test report, 4 pages |
| Power positions | Mounting positions reserved for intelligent busway / PDU, per cabinet |
| Power distribution option | Precision column head cabinet |
| Grounding | Front door, rear door and frame — multiple points |
| Rack height | 42U = 2000 mm · 47U = 2200 mm; other heights built to order |
| Width × depth | 600×1000 · 600×1100 · 600×1200 · 800×1200 mm |
| Steel and gauges | Baosteel / Ansteel SPCC cold-rolled; 2.0 mm uprights · 1.2 mm doors |
| Static load | 1,000 kg standard · 1,500 kg on reinforced-frame models |
| Unit documentation | Full inspection before shipment, with a certificate per unit |
| Records retention | Key quality data kept for the product lifecycle |
| Structural warranty | 5 years on the rack frame |
Solution
Two ways in, and a trail that outlives the handover
Where the power lands
- Mounting positions reserved for intelligent busway / PDU, per cabinet

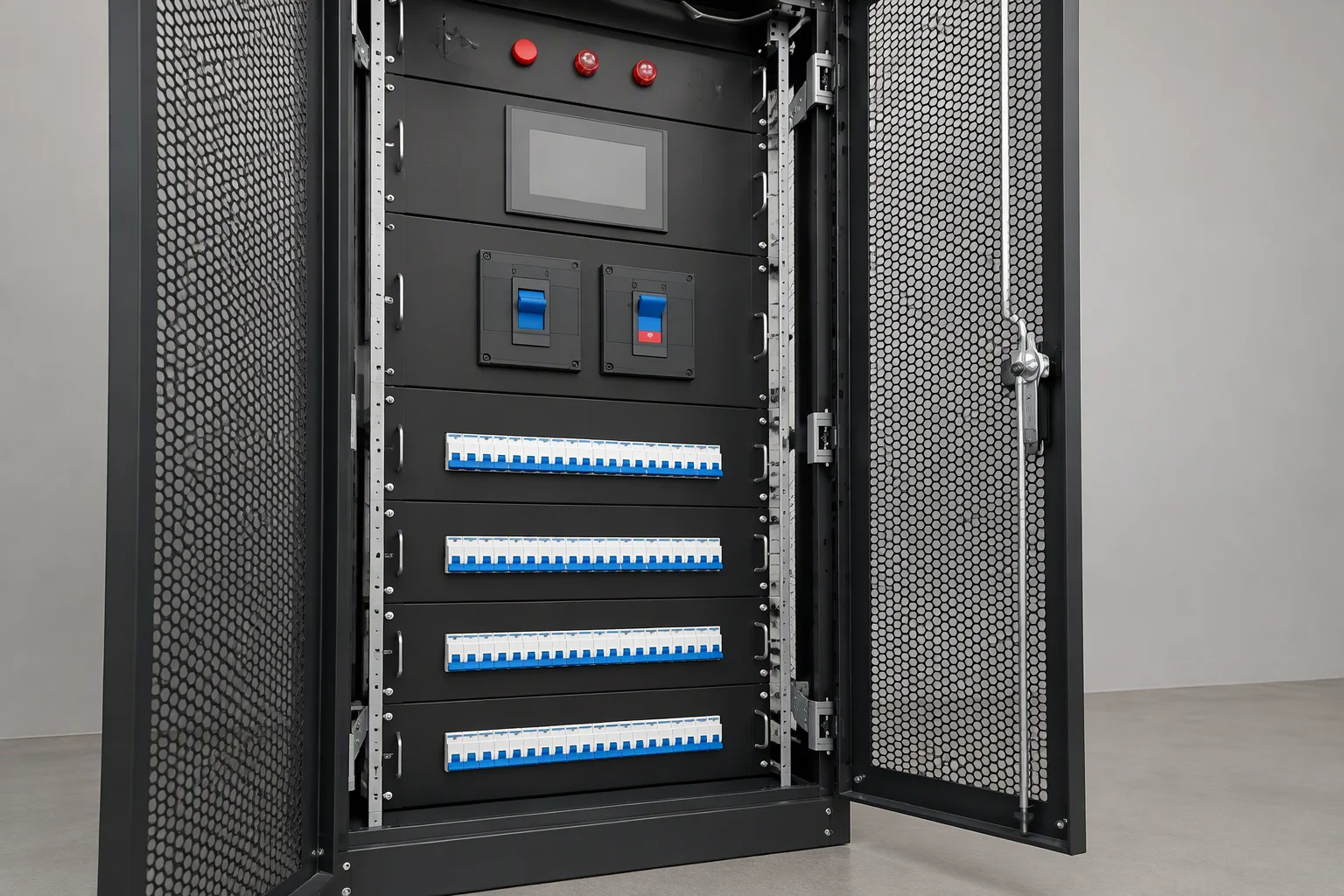

- Precision column head cabinet drawn to sit against the row

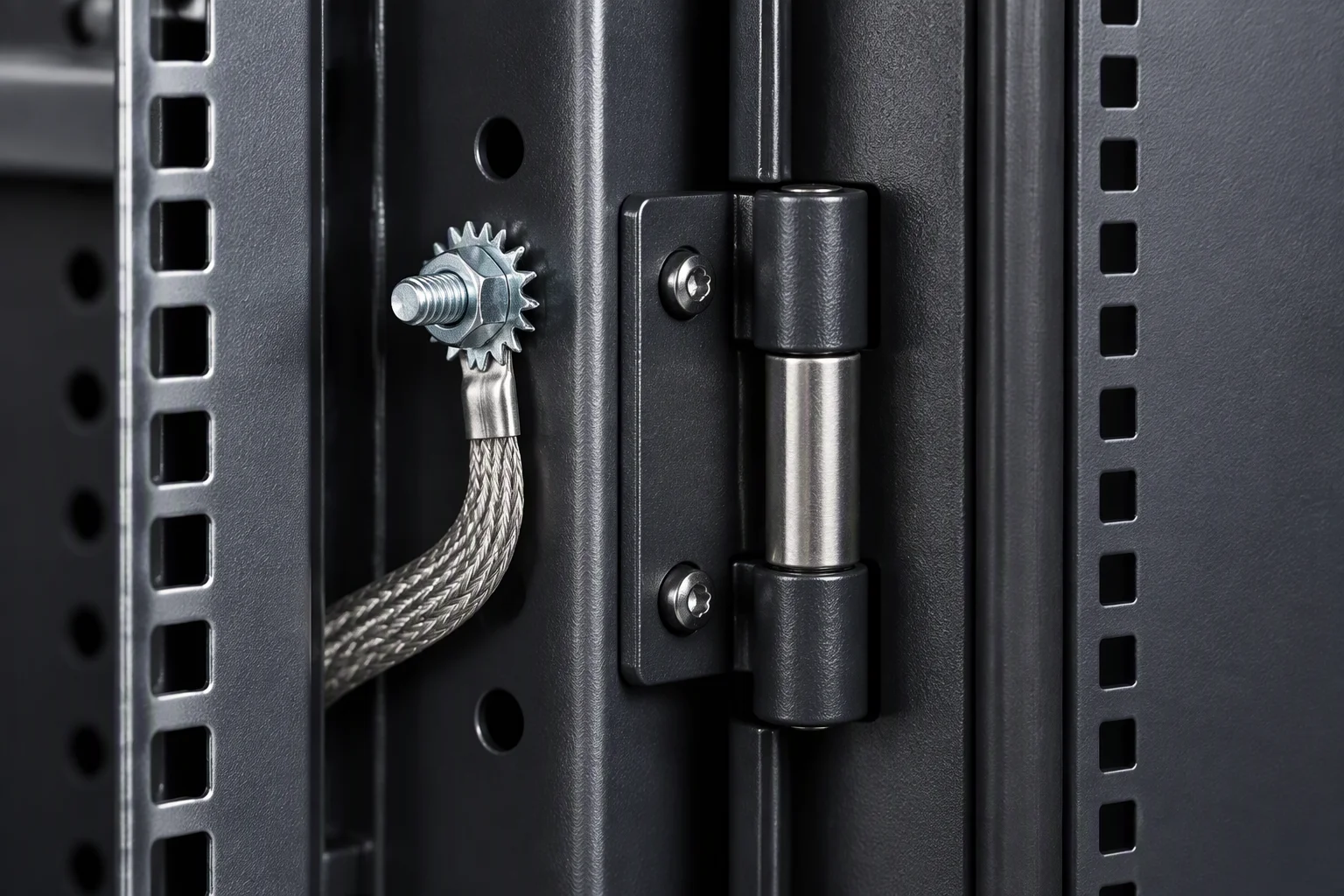

- Front door, rear door and frame bonded at multiple points
Where the record lands
- Every unit inspected in full before shipment, with its own certificate
- Key quality data kept for the product lifecycle
- Cabinet-side monitoring data is recorded on the platform side. No screen is drawn on this page.
UPS units in these packages: Manufactured by Bainard — not by ems-rack.
Evidence
The 18 pages, group by group
-
Cover
Cover and commission details
The issuing laboratory, the commissioning party and the cabinet model under test.
-
P-01 → P-07
The conclusion, the equipment as tested and the frequency curves
The pass verdict, the cabinet as configured and mounted, and the natural-frequency curves from the two runs.
-
P-08 → P-17
Spectra, measured frequencies and item-by-item verdicts
Measured values for each item, with the verdict written against each one.
-
P-18
Test conditions and personnel
The closing page of the report: the test conditions and the test personnel, marked as the last page.
Project record

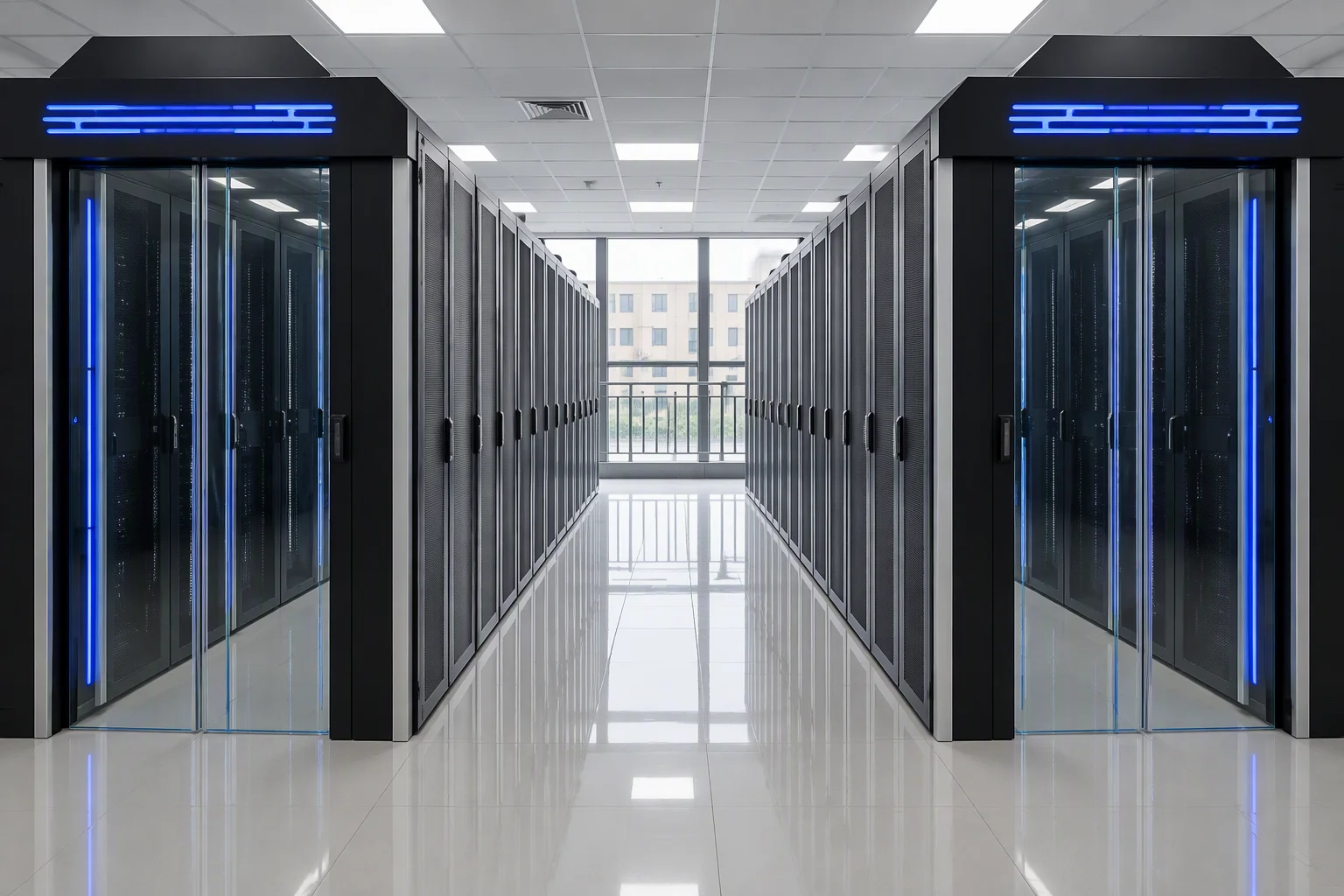

New China Life Insurance data centre
Rack rows, containment and the power positions, delivered into a room whose systems are reviewed by the client's own finance-side acceptance process.
- Scope
- Cabinet rows, cold aisle containment, reserved busway and PDU positions
- Acceptance
- Cleared the client's own review at the first submission
- Monitoring
- Data collected across the row; faults raised before an operator found them by hand
Next step
Send the standard, we send the file.
Send the acceptance standard your review uses. We answer with the document that covers each line — and say plainly where a document does not exist.
Every request is either accepted or explicitly refused — never silently dropped.
