MICRO MODULAR · TR-mud SYSTEM
One module, one scope: aisle, in-row cooling, power positions, monitoring.

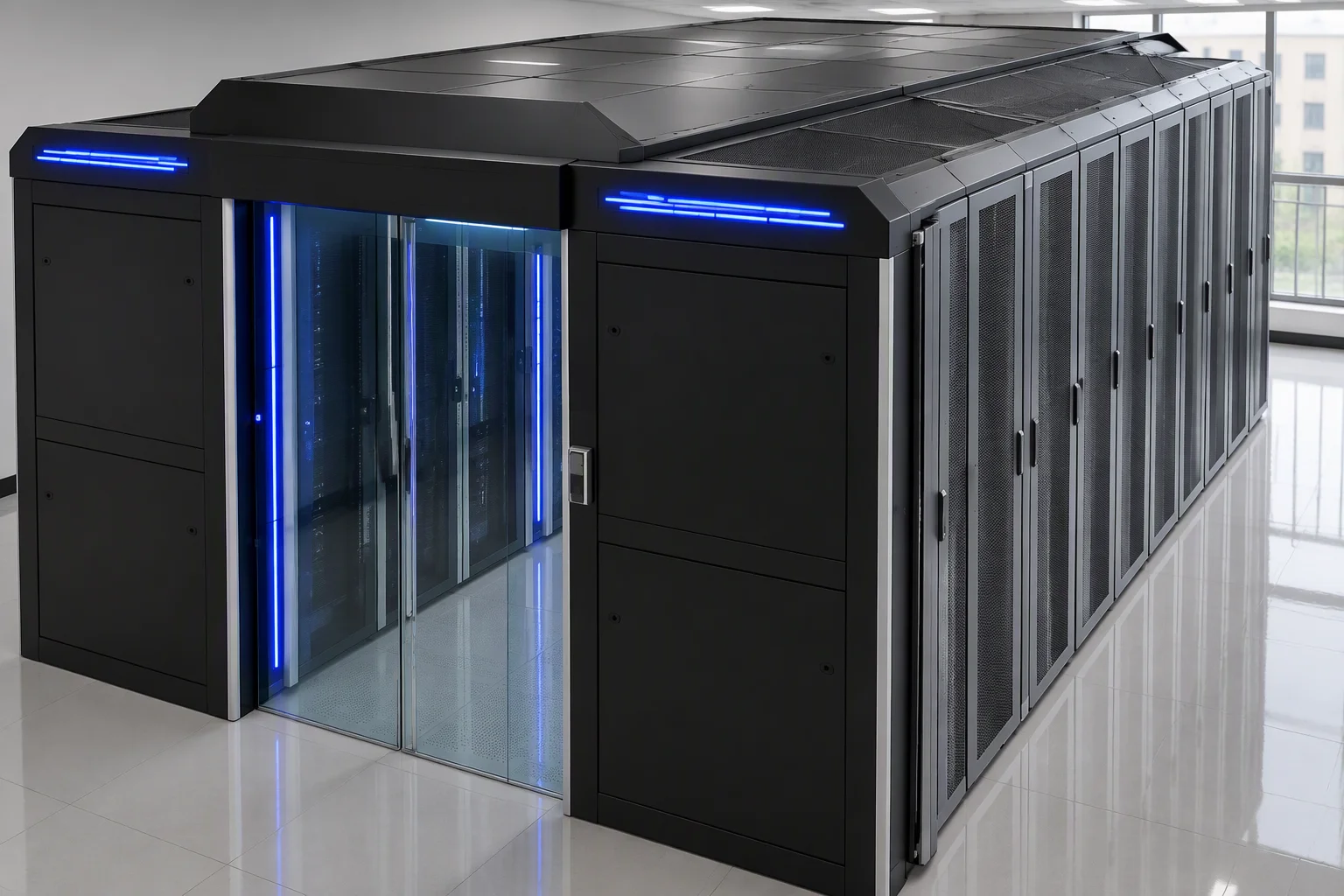

TR-mud packages the sealed aisle with in-row cooling, power distribution positions and monitoring. This page is the boundary document — it says which items we manufacture, which come from partner brands, and which stay with you.
- 1
- Racks
- 2
- Aisle enclosure
- 3
- In-row cooling
- 4
- Power cabinet
- 5
- Roof panels
- 6
- Monitoring points
SCOPE OF SUPPLY
Who supplies what, line by line
| Item | Supplied by | Notes |
|---|---|---|
| Rack cabinets (42U / 47U) | ems-rack | Built on our own lines — 2.0 mm uprights, 1.2 mm doors |
| Cold aisle enclosure — frame, roof panels, sliding glass doors | ems-rack | Sealed double-row aisle |
| In-row cooling units | Envicool (partner brand) | Manufactured by Envicool — not by ems-rack. |
| Closed-loop airflow design and panel fit | ems-rack | Blanking panels and roof closure fitted to the row |
| UPS | Bainard (partner brand) | Manufactured by Bainard — not by ems-rack. |
| PDU and power distribution positions | ems-rack | Positions reserved and fitted inside the power cabinet |
| Monitoring software — cold and hot aisle management | ems-rack | In-house software; 1 software copyright registered |
| Alert delivery | ems-rack | Remote web access and SMS to the numbers you register |
| Fire interface | Coordination item | Roof panels flip open so a suppression discharge can enter the aisle; suppression equipment and discharge design stay with your fire contractor |
| Site preparation — slab, power feed, network | Customer | Not in our scope |
| Commissioning | Joint | Airflow and alarm checks run with your team before handover |
| Documents with the goods | ems-rack | ISO 9001 / 14001 / 45001 certificates and third-party test reports |
THE LOOP
Air in the aisle, heat in the row
In-row units deliver cold air straight into the sealed aisle. It passes through the equipment, comes back as hot exhaust inside the cabinet row, and returns to the unit without ever mixing with the supply. Blanking panels close the empty U positions, and the roof closes the top of the aisle.
- Supply
- Into the aisle, from the in-row unit
- Return
- Inside the row, back to the same unit
- Gaps
- Blanking panels in every empty U position
- Roof
- Closed, so the two streams cannot meet
MONITORING
What the monitoring reports — and why there is no screenshot on this page
What it reads
Temperature and humidity on the cold side, cooling-unit status, and door state. Nothing else is polled.
Where the alerts go
Two ways out — a web page you open remotely, and SMS to the numbers you register. Alert delivery is tested with your team before handover.
Why there is no screenshot here
The software is a working tool, holding your site names and your alert numbers. A marketing mock-up of it would be a picture of something that does not exist, so there is none. Ask for a live walkthrough on a call and we will open the real one.
REGISTERED
Three patents and one software copyright
- Granted utility model patents3 — cabinet with integrated temperature display; cabinet with integrated lighting; frame cabinet with lighting and temperature display
- Software copyright1 — cold and hot aisle management system V1.0, registered to us
GROWTH
Start at three cabinets, grow along the row
-
3
cabinets
One sealed aisle at minimum width, in-row unit at the row end.
-
8
cabinets
The aisles fill up; the enclosure stays on the same line.
-
2
second module
A second module joins along the same aisle line.
Growth is added along the row; the room does not have to change.
SYSTEM SPECIFICATION
Twelve lines, ready for your tender document
| Parameter | Value |
|---|---|
| System | TR-mud — double-row micro-module |
| Architecture | Sealed cold aisle plus in-row cooling in one deliverable |
| Cabinet capacity | 3–8 cabinets per module, expandable along the row |
| Cooling | In-row closed-loop; units manufactured by Envicool, not by ems-rack. |
| Cooling energy | 25%+ lower than a conventional room |
| Deployment time | 2–3 weeks |
| End doors | Sliding glass doors, full-width access for service |
| Roof | Panels flip open so a gas suppression discharge can enter the aisle |
| Power | UPS by Bainard, not by ems-rack. PDU and distribution positions by ems-rack. |
| Monitoring | Remote web access and SMS alerting; in-house management software |
| Rack compatibility | 42U / 47U racks, 600 mm and 800 mm widths |
| Documents with the goods | ISO 9001 / 14001 / 45001 certificates and third-party test reports |
Ask for the scope-of-supply sheet for your project
Send the room dimensions and the U count you are planning for. Your request is either accepted or it fails with a message — it is never dropped silently.
