Network cabinets · same line as our server racks
Network cabinets, built on the same line as our server racks.
Same SPCC sheet, same 2.0 mm uprights, same finishing line — configured for patch panels, switches and cable management instead of a rack full of servers.
- Fixed on the platform
- steel · upright thickness · door thickness · finish sequence · grounding · mesh
- Confirmed at quotation
- height · width · depth · door type · cable entry · accessories

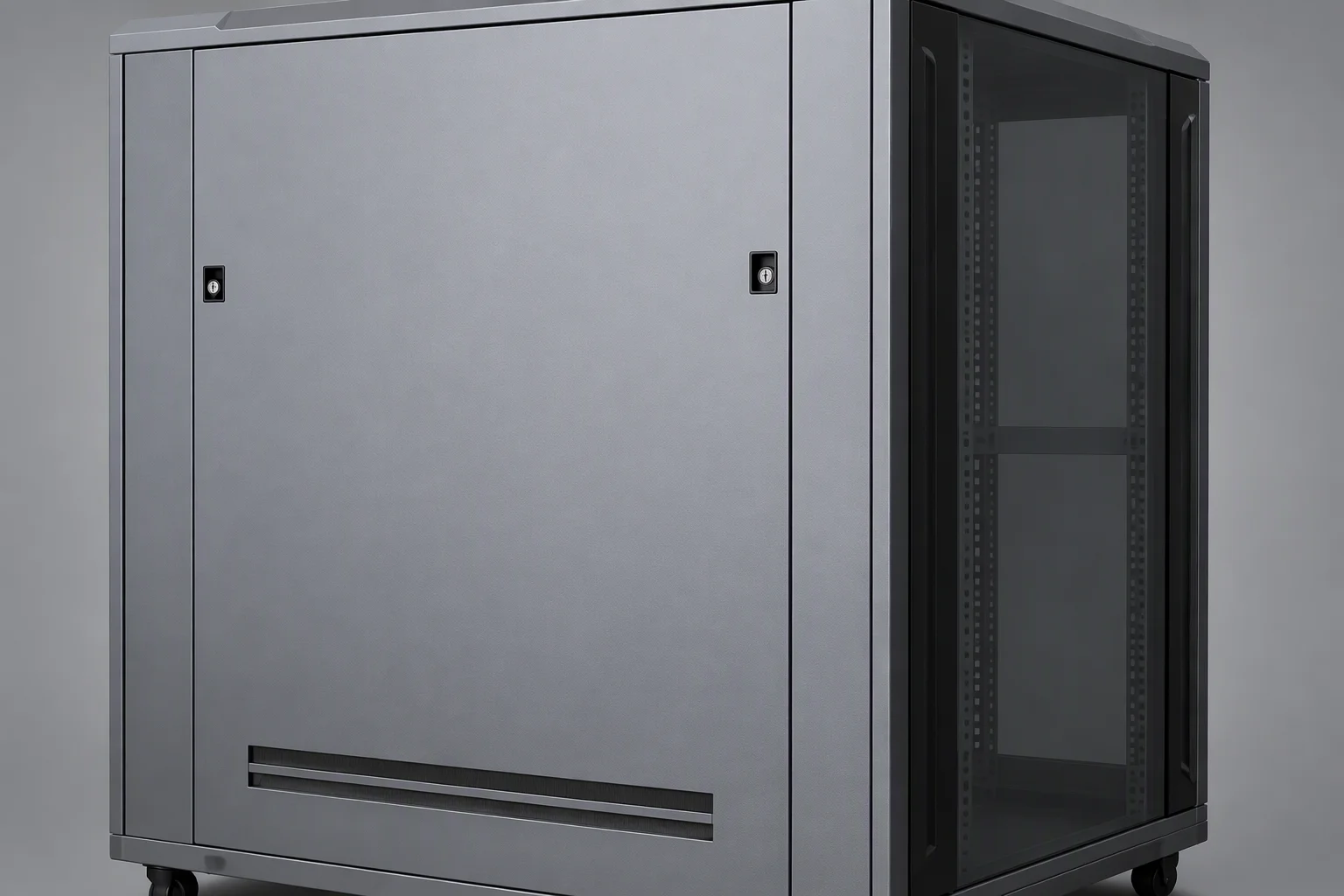

Network cabinet — solid front door, tinted glass side panel, plinth and castors. Photographed in our own finish.
Configuration matrix
What is fixed, and what is quoted
Two states, two columns. Anything in the middle column is settled before the sheet is cut; anything in the right column is settled with you on the drawing.
| Decision | Fixed on the platform | Confirmed at quotation |
|---|---|---|
| Build platform | Same production line as the server rack range | — |
| Steel | SPCC cold-rolled sheet, Baosteel / Ansteel | — |
| Upright thickness | 2.0 mm | — |
| Door thickness | 1.2 mm | — |
| Surface finish | Degrease → phosphate → electrostatic powder coat | — |
| Grounding | Multi-point, on both doors and on the frame | — |
| Front door open area | ≥75% on the perforated door used across the platform | Door type — mesh, glass or solid; the open-area figure follows the door you choose |
| Rear door open area | ≥60% | — |
| Rail standard | 19-inch, U-height marked | — |
| Height | The rack range on the same line is built at 42U = 2000 mm and 47U = 2200 mm | Network-cabinet heights confirmed per configuration, on the drawing |
| Width and depth | The line cuts 600 × 1000 / 1100 / 1200 mm and 800 × 1200 mm for the rack range | Network-cabinet width and depth confirmed per configuration |
| Cable entry | — | Position confirmed on the drawing before production |
| Accessories — shelves, fans, cable managers | — | Quoted with the configuration |
| Static load | 1,000 kg is the server rack platform rating | Network-cabinet rating confirmed per configuration |
| Structured cabling | — | Not made by ems-rack — see the boundary block below |
This matrix is the document we quote against. Take it to your own bill of materials — the left two columns will not move.
Request a quotationServer racks, network cabinets
Same line, same hands

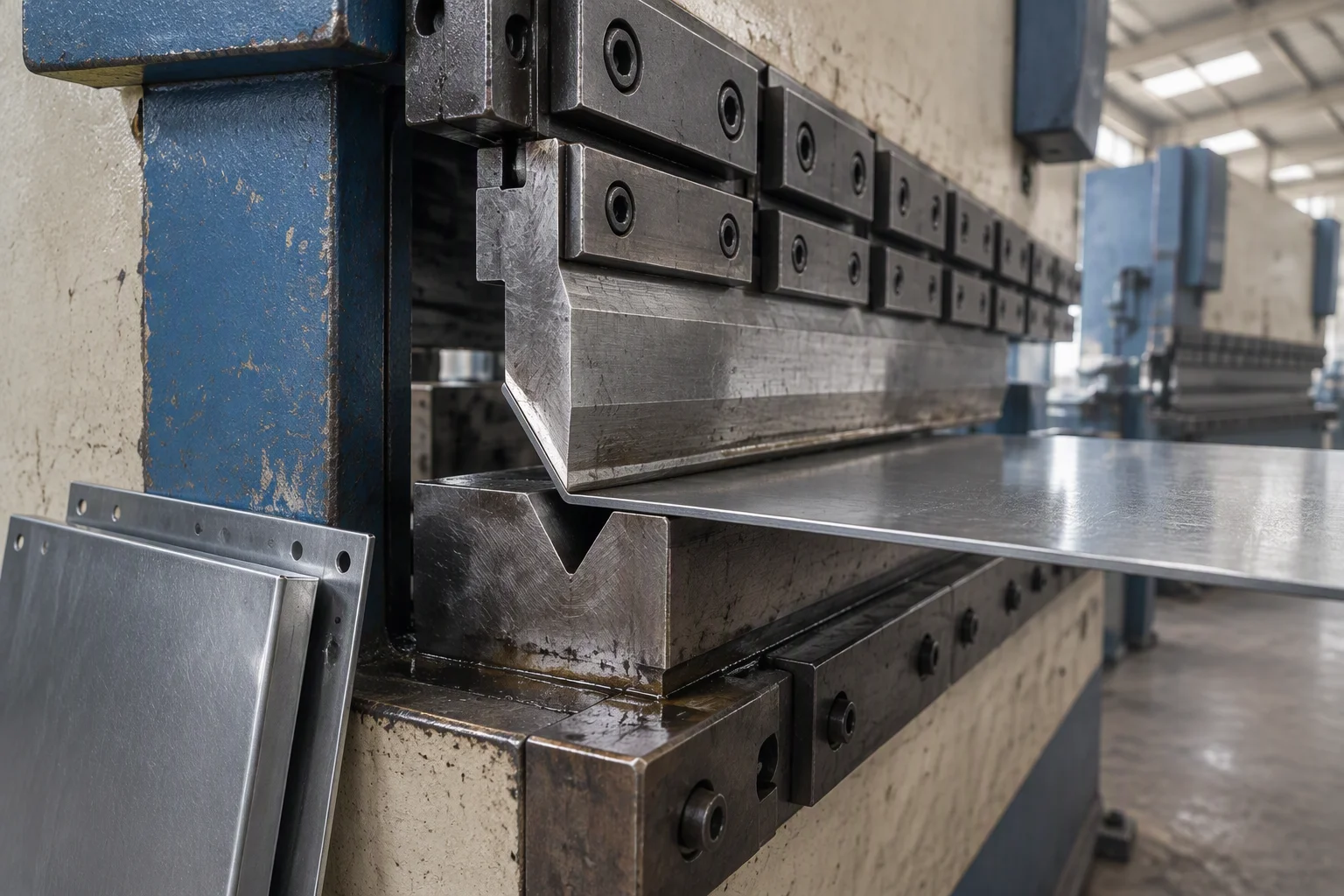

Network cabinets come off the same production line as the server racks: the same cold-rolled SPCC sheet, the same press brakes, the same degrease–phosphate–powder coat line, the same multi-point grounding practice.
What changes is the configuration — patch panels, switches and cable management instead of shelves and heavy rails.
- SteelSPCC cold-rolled sheet from Baosteel or Ansteel, one source fixed per batch.
- Thickness2.0 mm uprights and 1.2 mm doors on both ranges.
- Pre-treatmentDegrease, then phosphate, then electrostatic powder coat — never paint over mill scale.
- GroundingMultiple bonding points on the front door, the rear door and the frame.
Scope
What we make, and what we do not
Made by ems-rack
- Network cabinets
- Server racks
- Cold aisle containment
- Micro modules
- Power distribution cabinets
Not made by ems-rack
Structured cabling — patch panels, copper and fibre, cable managers.
Manufactured by Yizhou — not by ems-rack. It is listed on the Partner Brands page and it is outside this page's scope.
See Partner BrandsWe put this here rather than at the bottom of a catalogue because a network engineer needs to know which half of the bill of materials they are buying from us — and which half he is not.
Approval
Four things to check on the drawing before you approve it
- 01 Upright thickness — 2.0 mm, written on the drawing, not only in a brochure.
- 02 Door open area — ≥75% on the front door, ≥60% on the rear door.
- 03 Grounding points — multi-point, on both doors and on the frame.
- 04 Finish sequence — degrease, phosphate, then electrostatic powder coat; not paint over mill scale.
Asked before ordering
Three questions network engineers ask us
Can a network cabinet carry the same load as your server racks?
The 1,000 kg static load figure is the server rack platform rating. For a network cabinet the rating is confirmed for the configuration you order — patch panels and switches rarely need the server figure, and we would rather quote you the real one.
Do you supply the patch panels and the cable?
No. Structured cabling in the catalogue is a third-party brand. Manufactured by Yizhou — not by ems-rack. It sits on the Partner Brands page, kept separate from the nine lines we build ourselves.
Do I get a drawing before production?
Yes. The cabinet is drawn and confirmed with you before the sheet is cut, and that drawing is the document we build to.
Next step
Send us your configuration list
Height, width, depth, door type and cable entry are the five lines that decide the drawing. Paste them and the quote comes back against this matrix.
Every request is either accepted or explicitly refused — never silently dropped.
