UPS
Built in. Keeps the IT load up while the site supply is being restored.
Supplied by Bainard — manufactured by Bainard, not by ems-rack.

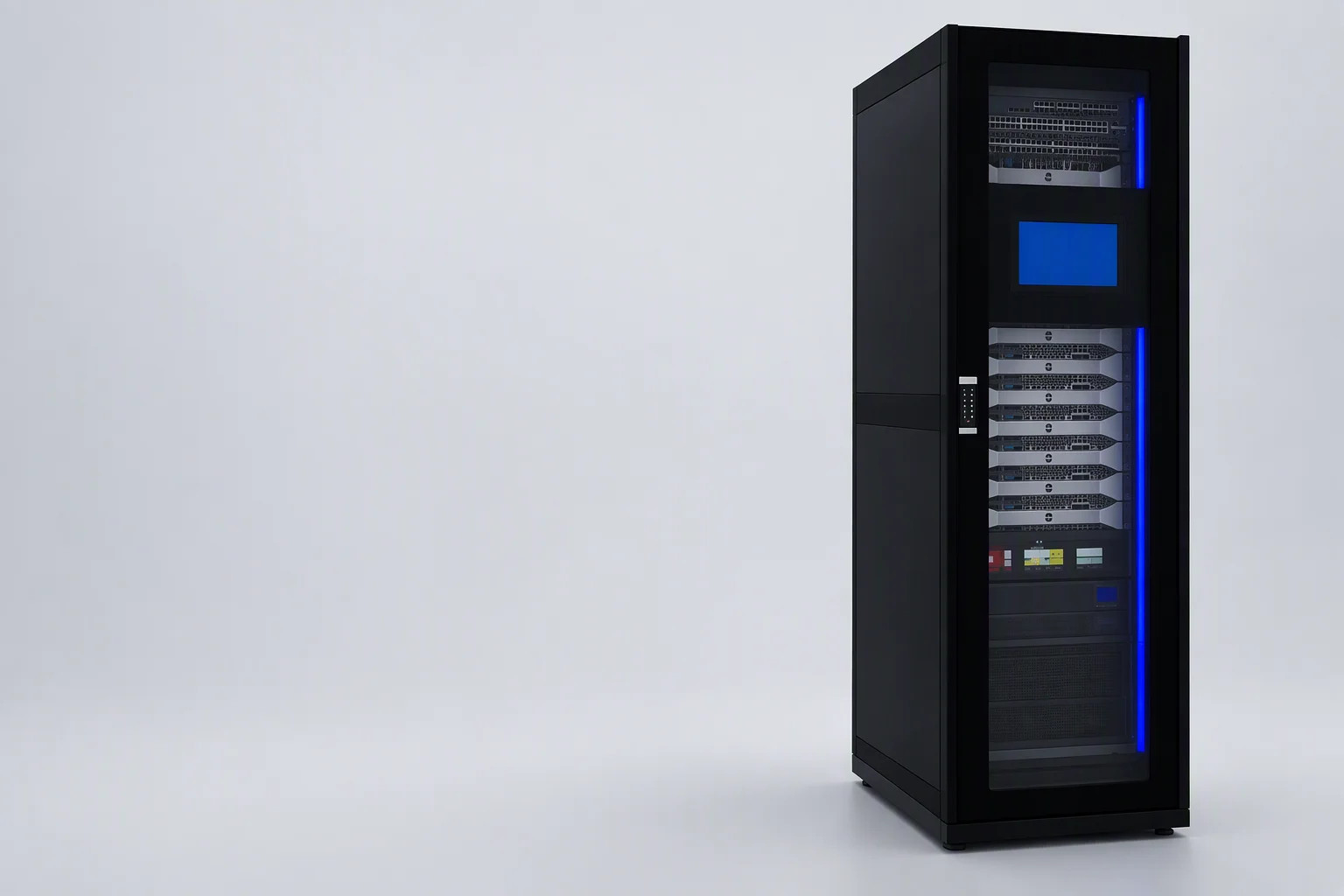

SINGLE-ROW INTELLIGENT CABINET · TR-smd
27U of IT space in 0.72 m² — cooling, power and monitoring inside one cabinet.
27U
IT space, 19-inch rails
0.72m²
Footprint, single row
TR-smd is a single-row cabinet with built-in UPS, PDU, precision cooling and DCIM. It arrives as one unit, so the site work is three hours of connection rather than a room build.
WHAT ONE UNIT CONTAINS
The whole specification of one cabinet
| Parameter | Value |
|---|---|
| IT space | 27U, 19-inch rails |
| Footprint | 0.72 m², single row |
| UPS | Built in — manufactured by Bainard, not by ems-rack. |
| PDU | Built in |
| Precision cooling | Built in — manufactured by Envicool, not by ems-rack. |
| Monitoring — DCIM | In-house software; remote web access and SMS alerting |
| Alert delivery | Web page and SMS to the numbers you register |
| Safety interlock | Smoke sensor interlocked with the emergency ventilation |
| Installation time | 3 hours on a prepared site |
| Unit type | Single row, freestanding |
| Related intellectual property | 3 granted utility model patents and 1 software copyright — cabinets with integrated temperature display and lighting, and the cold and hot aisle management system V1.0 |
| Documents with the goods | ISO 9001 / 14001 / 45001 certificates and third-party test reports |
INSIDE THE ENCLOSURE
Four subsystems, and who makes each one
PDU
Built in. Branch distribution inside the cabinet, so no separate wall-mounted distribution is needed.
Supplied by ems-rack.
Precision cooling
Built in. Sized to the load of one cabinet, not to a room, which is what makes the small footprint possible.
Supplied by Envicool — manufactured by Envicool, not by ems-rack.
DCIM
In-house software. Reads temperature, humidity and unit status; alerts go out by web and by SMS. Described in words — there is no interface image on this page.
Supplied by ems-rack — written and maintained by us.
ON SITE
Three hours, in four steps
-
0:00
Set the unit
Positioned on the prepared floor.
-
1:00
Power
The feed is brought to the cabinet input.
-
2:00
Network and alerts
Remote access is set up and the SMS recipients are registered.
-
3:00
Handover
Alarm test with your team, then it is yours.
Times are typical for a prepared site. The power feed and the floor preparation are your scope — a three-hour figure is only honest when the site is ready.
UNATTENDED
When nobody is on site
A smoke sensor inside the cabinet is interlocked with the emergency ventilation. Cooling and power alerts leave the cabinet two ways: a web page you can open remotely, and SMS to the numbers you register. Nothing about that depends on someone being in the room.
- Smoke
- Sensor inside the enclosure, interlocked with the ventilation
- Ventilation
- Emergency ventilation opens on the interlock, not on a person
- Alerts out
- Remote web page and SMS to registered numbers
- Tested
- The alarm path is tested with your team at handover
WHERE IT FITS
Three sites this cabinet was built for
Telecom and edge sites
A cabinet at the edge of the network, where there is no machine room to put one in.
Production floors
A cabinet next to the line instead of an IT room at the other end of the building.
Clinics and remote offices
Records systems that cannot stop and cannot justify a plant room.
REGISTERED
Where the word intelligent comes from
Related intellectual property — 3 granted utility model patents (cabinet with integrated temperature display; cabinet with integrated lighting; frame cabinet with lighting and temperature display) and 1 software copyright (cold and hot aisle management system V1.0).
- Patents
- 3 granted utility model patents
- Software
- 1 software copyright, registered to us
- With the goods
- ISO 9001 / 14001 / 45001 certificates and third-party test reports
Tell us the site, and we will tell you whether TR-smd fits it.
Floor area, the height of the doorway and the load you are putting in it are enough to answer that. Your request is either accepted or it fails with a message — it is never dropped silently.
