Blanking Panels & Brush Sealing That Stop Hot-Air Recirculation
Behind every rack face, cold supply air sits centimeters from hot return. Every U left open is a window between the two — the rack's own fans pull supply straight through the gap and out the back, starving the top of the row and making the CRAC run harder for nothing. Industry estimates put bypass and recirculation losses near 30% of cooling on unmaintained floors, and open rooms routinely lose 25–50% of cold air to bypass. The fix costs pocket change per U: snap-in steel blanks in 1U–4U and flame-retardant brush kits, fitted without tools in under 30 seconds per U, taking contained aisle leakage from 3–10% to under 1% — the cheapest kilowatt you will ever save, with payback typically inside 6 months. Every panel you snap in is a saving you collect twice: once in cooling energy, once in deferred chiller capacity.
Request a Quotation Jump to Specifications
<30 s per U · 1U–4U · leakage 3–10% → <1% · payback <6 months
An empty U is a window between two temperatures
A server rack is an air machine: cold in at the face, hot out at the back, at up to 132 kW per cabinet on our liquid-cooled line. Every open U punctures that machine. The top-of-row servers, already the hungriest, inhale their neighbors' exhaust instead of aisle air; return temperatures sag and the cooling plant chases a load that never needed the energy. Containment alone cannot fix it — doors and roofs seal the aisle, but these leakage points sit behind the rack face. The audit takes minutes: sweep the row, count the open U, and the wasted kilowatts are already on your meter. Blanking and sealing restore the boundary for less than the cost of the energy one open U wastes in a quarter.

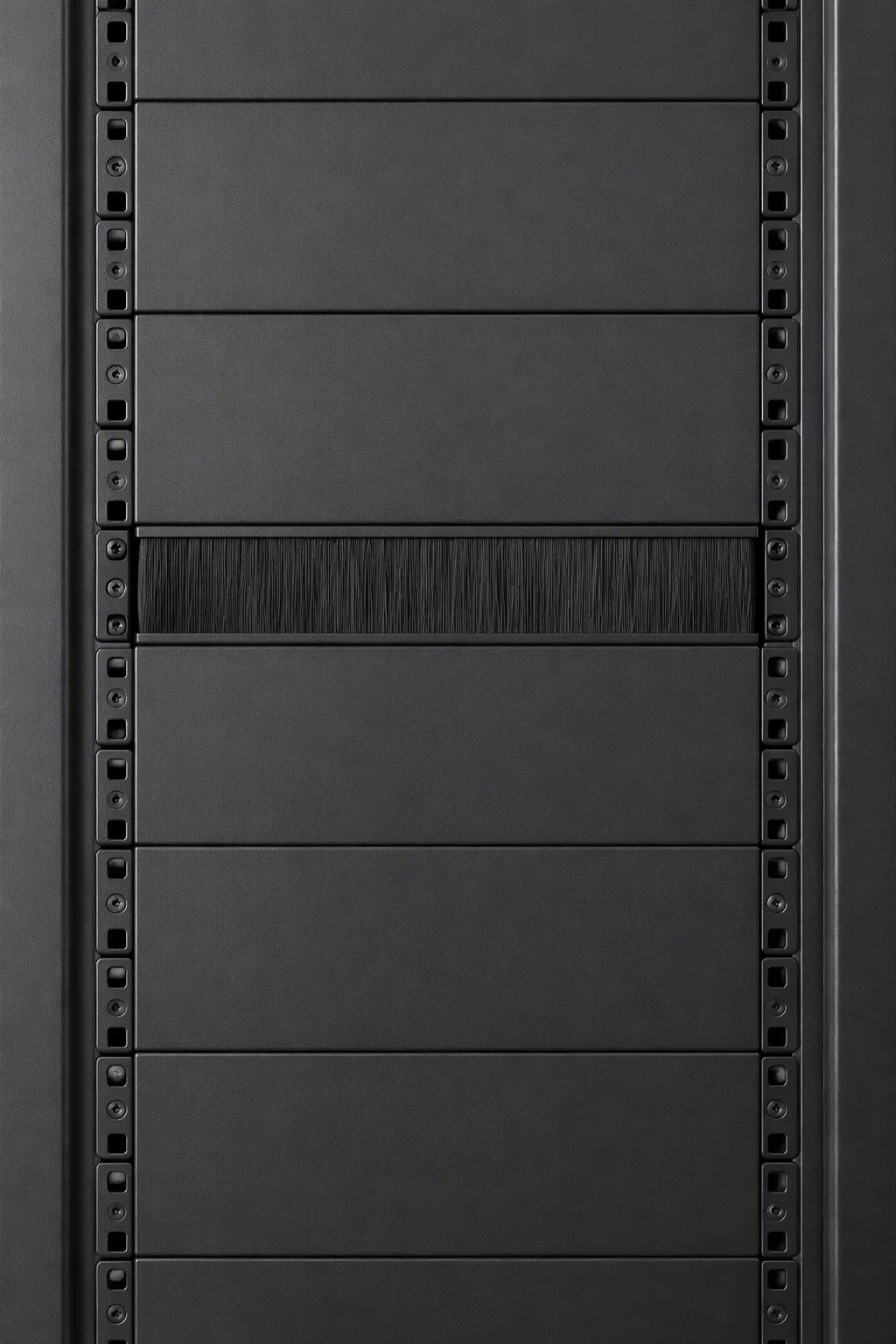

- Snap-in blanks: 1U–4U steel panels spring into EIA-310-E square-punch openings — no screws, no rail removal, under 30 seconds per U.
- Brush kits: flame-retardant nylon brushes seal rail cutouts, floor grilles and the gap line above rack tops, where a containment's fixed panels cannot reach.
- Measured effect: a contained aisle leaks 3–10% by nature; the full panel-and-brush kit drives it below 1%.
- Fits the fleet you have: panels and brushes suit 600/800 mm EIA-310-E frames from any maker, so retrofit floors start saving before any rack is touched. Pairs with our containment doors and roof panels when the aisle is rebuilt end to end.
- Documented savings: your crew logs the return-temperature spread per row before and after the sweep, so the payback number belongs to your floor, not to a brochure.
Blanking & sealing datasheet
Order by count, not by project: panels and brushes ship in bulk cartons sized for fleet-wide sweeps, mixed sizes on the same pallet. A 40-rack floor at today's average density carries roughly a thousand open-U decisions across it — a one-shift job for a two-person crew with a lift, no drawings and no downtime.
| Parameter | RF-BLK Specification |
|---|---|
| Panel material | 1.0 mm SPCC steel, powder-coated |
| Fire behavior | steel panel, non-combustible |
| Sizes | 1U, 2U, 3U, 4U snap-in |
| Retention | leaf-spring clips into EIA-310-E square-punch openings |
| Installation | tool-free snap-in, under 30 s per U |
| Brush strips | flame-retardant nylon, 12 mm standard trim |
| Brush mounting | self-adhesive base or clip-in carrier |
| Rack compatibility | 19" EIA-310-E frames, 600/800 mm wide, 42U–52U |
| Aisle leakage effect | contained 3–10% → <1% with full panel + brush kit |
| Colors | RAL 9005 black standard · RAL 7035 light gray optional |
| Packaging | 50-panel bulk carton, mixed sizes on request |
| Payback | typically under 6 months at standard utility rates |
The cheapest kilowatt you will ever save.
Under 30 s per U · 1U–4U · leakage 3–10% → <1% · payback under 6 months
