Cold Aisle vs Hot Aisle Containment — Which Boundary First?

2026-09-06 · 9 min read · RackForge Engineering Notes

Containment is the cheapest capacity a data hall can buy: the same cooling plant, the same IT load, more usable kilowatts per aisle. But "containment" names two different engineering moves, and retrofit order matters. Seal the wrong boundary first and the room can quietly get worse — in hot climates, a poorly matched cold-aisle enclosure has been measured raising PUE from 1.98 to 1.86 rather than lowering it. Here is the physics, the measured record and a decision order that survives contact with a real floor.

Two boundaries, two different physics

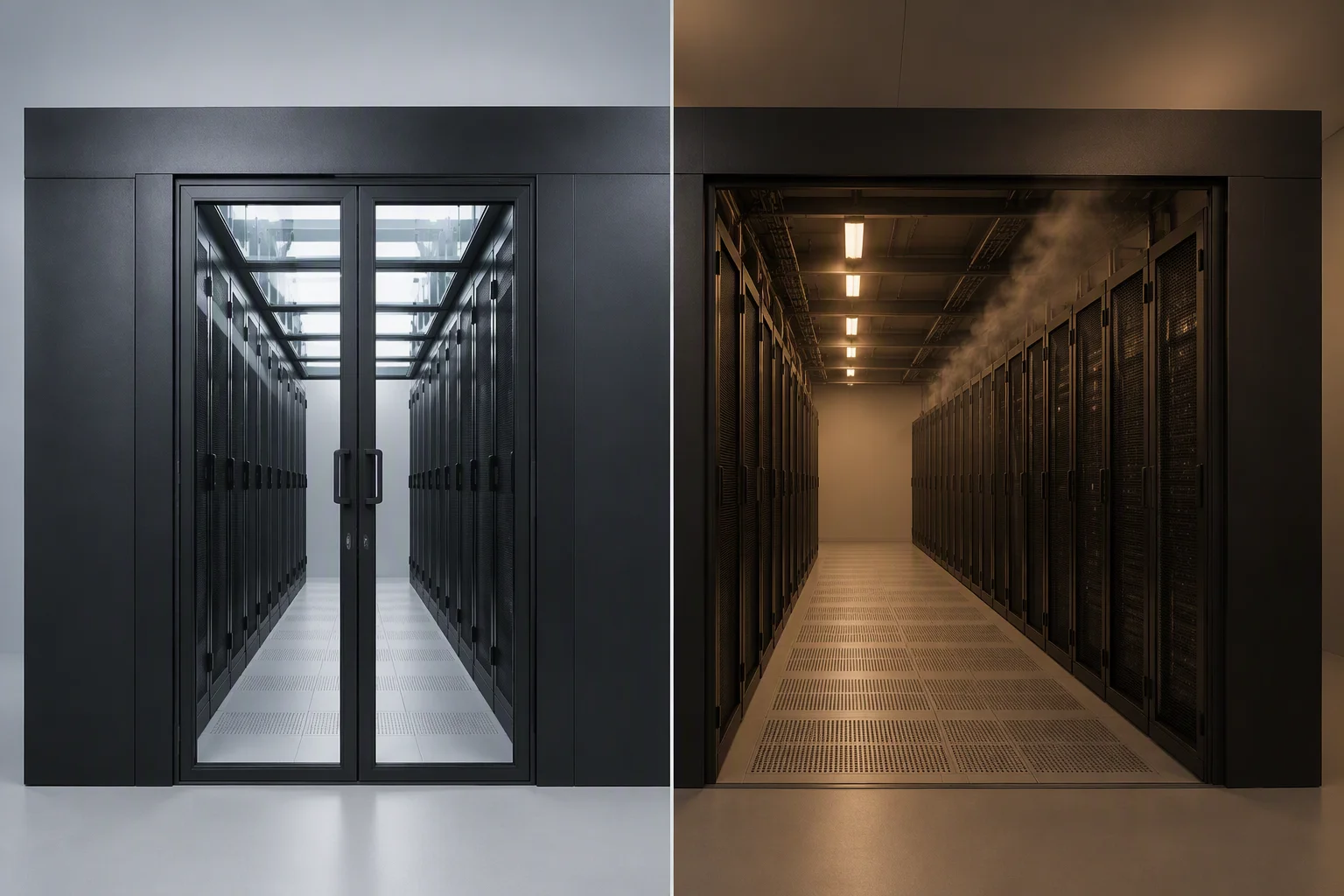

Cold aisle containment (CAC) encloses the supply side — the aisle the servers actually breathe from. Doors close the aisle ends, roof panels close the top, and blanking panels close every open U, so conditioned air can only enter through server inlets. The room itself becomes the return-air heat reservoir: hot exhaust mixes into the room volume and finds its way back to the cooling units at a higher, easier-to-remove temperature. Because the modification stays inside the aisle, existing CRAC/CRAH units and most raised-floor arrangements keep working unchanged.

Hot aisle containment (HAC) encloses the exhaust side instead. The hot aisle becomes a sealed duct that returns heat through a ceiling plenum, and the entire room is promoted to supply-air plenum: cooling units draw in room-temperature "pure" cold air with a higher delta-T across the coil, which is where the theoretical efficiency advantage lives. The trade is structural, not cosmetic — the ceiling return path, and the fire-protection treatment of that path, are now part of the cooling system.

Aspect	Cold aisle containment (CAC)	Hot aisle containment (HAC)
Enclosed boundary	Cold supply aisle — the zone IT equipment breathes from	Hot exhaust aisle, ducted back through the ceiling
The room becomes	Return-air heat reservoir	Cold-air supply plenum
Cooling plant sees	Unchanged supply temperatures, warmer return air	Higher delta-T across coils, cleaner inlet air
Multi-tenant fit	Per-tenant aisles; access-controlled doors meter who enters whose cold air	Room-level airflow — per-tenant metering is harder to isolate
Fire interface	Drop-away roof panels (release below 72 °C), zoned suppression per NFPA 75	All of that, plus the ceiling return path must be fire-treated
Retrofit scope	Aisle modules on the 600 mm grid; existing CRAC keeps running	Room-level ceiling return and controls — a bigger construction window

What the measured numbers actually say

The headline comparison — HAC saving 43% more in annual cooling-system energy cost than CAC, an annualized PUE delta of about 15% — comes from a widely cited industry white paper, and it is real. But it is a conditional result, and the conditions deserve the same type size as the headline:

• The premise: HAC's advantage assumes the room works as a clean supply plenum — a machine-room-level ceiling return path, with the return route fire-treated and the controls re-commissioned. That is a construction project measured in weeks-to-months, not an aisle kit measured in days.
• In mild climates, the measured gap closes: the same white-paper case puts both CAC and HAC at PUE 1.65, down from 1.84 uncontained, with roughly 37% chiller energy saving either way. If your hall sits in that band, the boundary you build first is a schedule question, not a physics question.
• In hot climates, order matters more: uncontained PUE 1.98 fell to 1.69 with HAC (28% chiller saving), while CAC without a matching room-level strategy rose to 1.86 — sealing the cold aisle starves the room path when heat has nowhere efficient to go.
• Independent of boundary, containment quality is measured in leakage: contained systems typically leak 3–10%, dropping under 1% with full sealing of blanking panels and brush kits, against 25–50% bypass in uncontained rooms. ENERGY STAR figures attribute up to 10% total-energy and up to 25% IT-fan-energy savings to cold-aisle isolation alone.

None of this makes HAC wrong. It makes HAC a phase-two move that depends on infrastructure most retrofit rooms have not yet built.

Deciding the order — a six-point check

The RackForge recommendation

Start with CAC. It is the fastest path from PUE 1.84-class to 1.65-class on a live floor, it works with the cooling plant you already own, and per-tenant doors turn an efficiency project into a billable product. Treat HAC as a deliberate phase two — take it when the ceiling return and fire budget exist, not because a white paper's headline said 43%. Both boundaries should share one rack family: RackForge containment — glass doors, roof panels and sealing kits — is built on the same 600 mm module as the racks, so phase one never has to be unbolted to build phase two. And when the next phase is density rather than airflow, the power-and-coolant integration notes in the busbar pre-integration article pick up where this one stops.
